Well Bar Sets

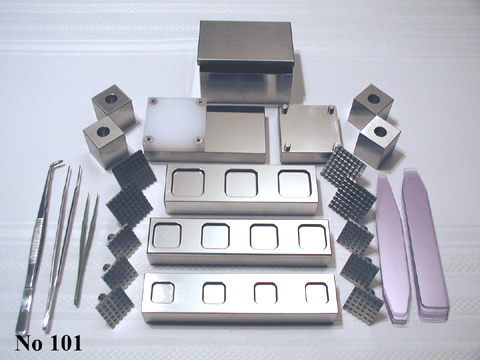

101 - Complete Set - three size well bars (18mm, 24mm,30mm), 6 small chucks, 4 large chucks, 4 over-chuck freezing blocks, chuck bin, 16 dispensing slides, cutting board/freezing griddle, elevated freezing block, angled embeddingforceps and accessories.

Price: $2,000.00

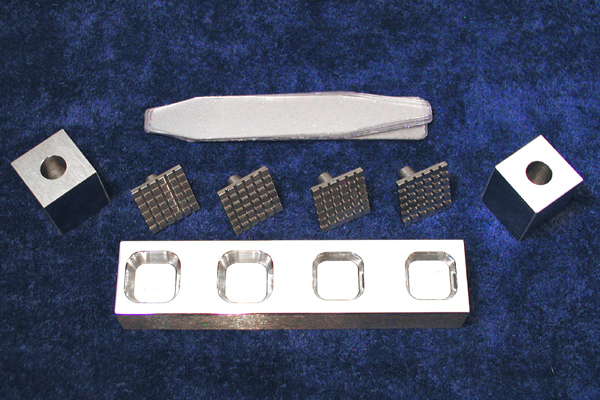

 111 - Small Embedding Well Bar Set - one 18 mm well bar, 4 small chucks, 2 over-chuck freezing blocks and 8 dispensing slides. Accessories included.

Price: $600.00

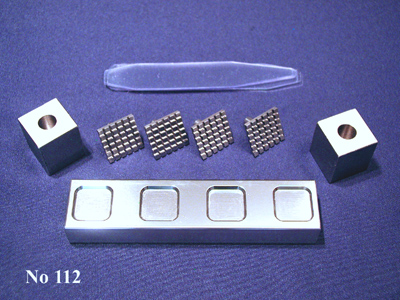

112 - Medium Embedding Well Bar Set - one 24 mm well bar, 4 small chucks, 2 over-chuck freezing blocks and 8 dispensing slides. Accessories included.

Price: $600.00

113 - Large Embedding Well Bar Set - one 30 mm well bar, 4 large chucks, two over chuck freezing blocks and 8 dispensing slides. Accessories included.

Price: $640.00

114 - 24/30 well bar set - One well bar with (2) 24 mm wellsand (2) 30 mm wells, 2 large chucks , 2 small chucks, two over chuck freezing blocks and 8 dispensing slides.

Price: $635.00

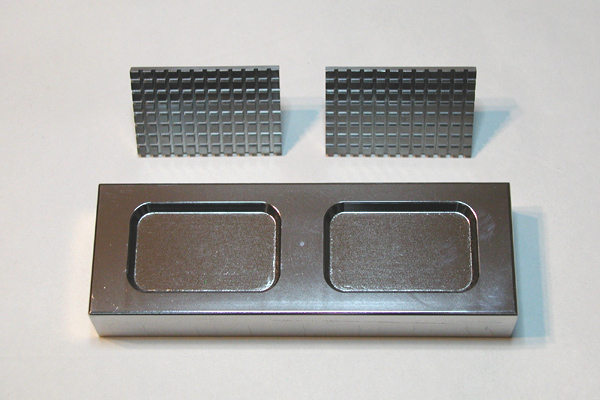

115 - 50 x 30 mm well bar set - One 50 x 30 mm well bar, and two 55 x 35 mm chucks.

Price: $435.00

116 - 20 x 20 deep well bar set  Set includes one 20 x 20 deep well bar, 4 small chucks, two over chuck freezing blocks and 8 dispensing slides.

Price: $600.00

Not Shown

117 - 24 x 24 deep well bar set  Set includes one 24 x 24 deep well bar, 4 large chucks, two over chuck freezing blocks and 8 dispensing slides.

Price: $640.00

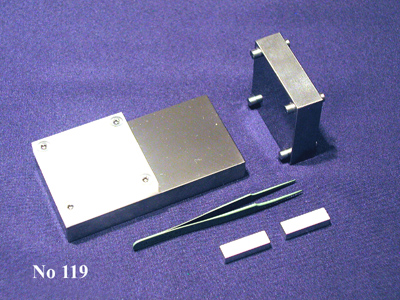

119 - Freezing Griddle / Elevated Freezing Block Set -includes epoxy-coated forceps, putty knife and extra elevating bars.

Price: $300.00

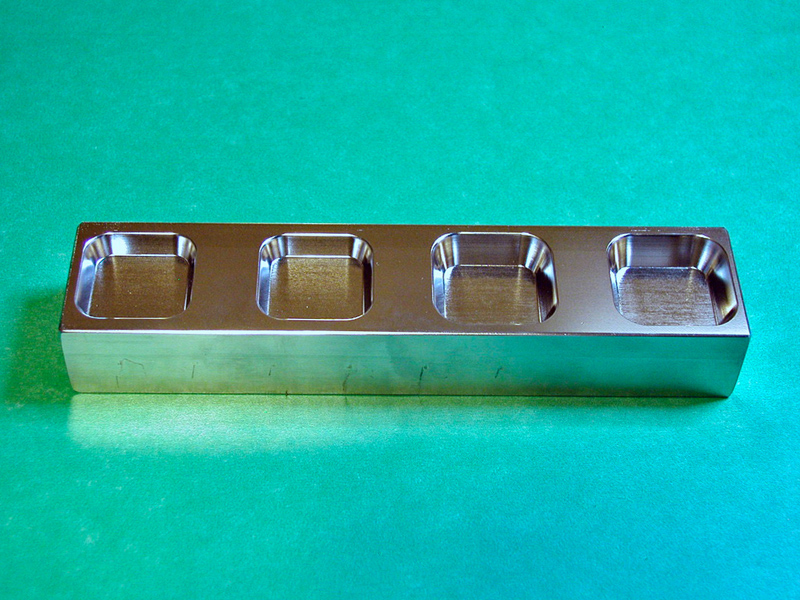

Embedding Well Bars - One inch thick stainless steel.

121 - 18mm- 4 wells

Price: $265.00

122 - 24mm- 4 wells

Price: $265.00

123 - 30mm-3 wells

Price: $265.00

125 - 30mm and 24mm-2 wells each

Price: $280.00





126 - 50 x 30 mm well bar - Section completely fills a standard slide

Price: $265.00

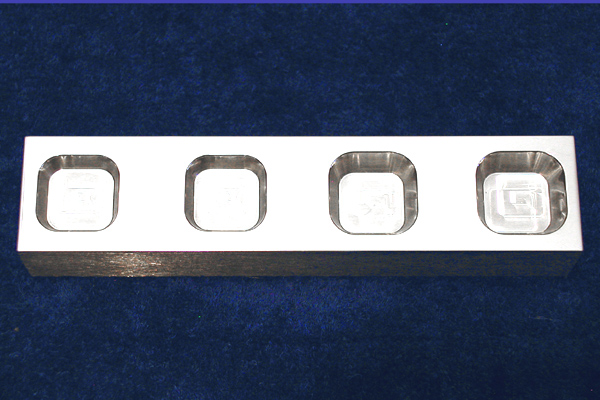

127 - 20 x 20 mm deep well bar - Two wells are 6 mm deep and two wells are 9 mm deep. Ideal for research applications such as re-embedding snap frozen blocks and embedding fresh whole small animal organs. I recommend using these bars at - 30 or colder. Using refrigerated embedding medium will maximize speed and prevent thawing of snap frozen tissues.

Price: $265.00

128 - 24 x 24 mm deep well bar - Two wells are 6 mm deep and two wells are 9 mm deep. Ideal for research applications such as re-embedding snap frozen blocks and embedding fresh whole small animal organs. I recommend using these bars at - 30 or colder. Using refrigerated embedding medium will maximize speed and prevent thawing of snap frozen tissues.

Price: $265.00

129 - 10 mm well bar - Four 10 mm square wells. Two wells are 4.0 mm deep and 2 wells are 6.0 mm deep. Designed for small specimens when multiple sections need to be placed on a single slide. This well freezes in ten seconds at -24C. Useful in both clinical and research applications.

Price: $265.00





Not Shown

Stainless steel chucks

131 - Small Chuck  28mm square Stainless steel

Price: $65.00

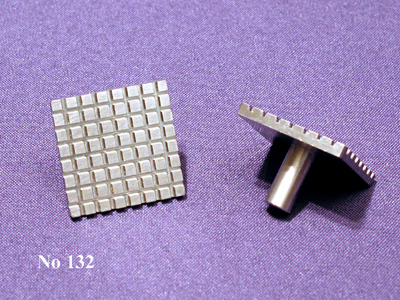

132 - Large Chuck 36mm  square Stainless steel

Price: $75.00

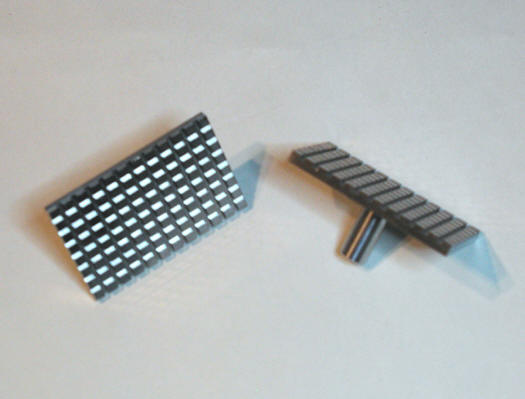

134 - Extra large chuck - 55 X 36 mm rectangle stainless steel

113: $85.00

Additional Parts

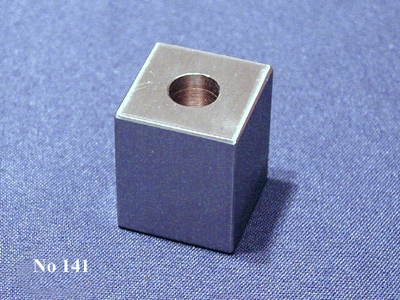

141 - Over-Chuck Freezing Block

Price: $25.00

142 - Chuck Bin - A sturdy little stainless steel box to shelter you chucks while staying cold in the cryostat. Loosefitting unattached cover for easy access.

Price: $28.00

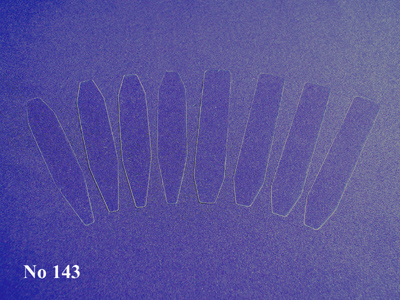

143 - Dispensing Slides (eight) - This is how we put the pizza in the oven.

Price: $25.00

144 - Angled flat embedding forceps - Used for flattening broad pieces as they come off the dispensing slide.  Each piece is handmade from a standard low cost angled forceps. They are heated, bent to approx. 60 Degrees, ground and polished. No two are alike! but they do the job.

Price: $30.00

152  - Embedding shelf - 4 x 8"  3 piece for temporary or permanent installation. Includes foam sealing strips. Fits Leica and Micron cryostats.

Price: $210.00

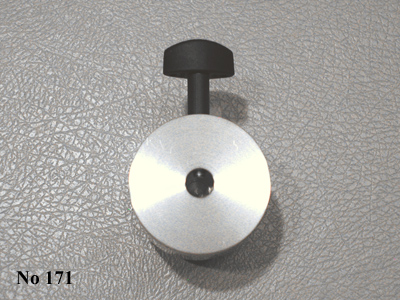

171 - Chuck adaptor for Shandon Cryotome Series Cryotome. Cryotome E and Cryotome SME

Price: $110.00

172 - Chuck adaptor for Tissue Tek

Price: $110.00

181 - Frozen section brushes

These are flat white boar bristle brushes which I cut at an angle. You can get these yourself in an art supply store for about the same price and make them yourself. These are very stiff and prevent the frozen section from curling through the brush.Packet of four brushes: Two # 1 (3/8 inch angle cut) and two #2 (1/4 inch angle cut.

Price: $24.00

Systems will be offered for a 30 day no obligation trial period.

"Creative invoicing " to avoid capital equipment delays is available.
